Titanium Forged Fittings

Home > Titanium > Titanium Forged Fittings

Titanium Forged Fittings Manufacturer and Supplier in Midland, UK

Titanium High Pressure Forged Fittings Price in Birmingham, Titanium Forged Fittings Exporter in Midland, Titanium High Pressure Forged Fittings Supplier in UK, Titanium Alloy Forged Fittings Manufacturers in Midland, UK.

Titanium Forged Fittings are components used in piping systems forged from titanium, a lightweight and strong metal known for its corrosion resistance properties. These fittings are typically machined under high pressure to enhance their structural integrity and durability. They are commonly employed in industries where resistance to extreme temperatures, chemicals, and corrosive environments is crucial, making them ideal for critical applications such as aerospace, marine, and chemical processing.

Titanium Forged Fittings Specifications

Specification :	ASTM B 363 / ASME SB 363.
Dimensions :	ASME B16.9, ANSI B16.9, ASME B16.28, ANSI B16.28, ANSI B16.25, MSS-SP-43.
Size :	½”NB to 24”NB in Sch 10s, 40s, 80s, 160s, XXS.
Schedule :	SCH 10, SCH20, SCH30, SCH40
Types :	Seamless / ERW / Welded / Fabricated
Grades :	Titanium Gr 1, Titanium Gr 2, Titanium Gr-5, Titanium Gr 7

Titanium Forged Fittings Mechanical Properties

Element	Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
Titanium Gr. 2	4.5 g/cm3	1665 °C (3030 °F)	Psi – 49900 , MPa – 344	Psi – 39900 , MPa – 275	20 %
Titanium Gr. 5	4.43 g/cm3	1632 °C (2970 °F)	Psi – 138000 , MPa – 950	Psi – 128000 , MPa – 880	14 %

Titanium Forged Fittings Chemical Composition

Grade	Ti	C	Fe	H	N	O	Al	V
Ti Grade2	99.2 min	0.1 max	0.3 max	0.015 max	0.03 max	0.25 max	–	–
Ti Grade5	90 min	–	0.25 max	–	–	0.2 max	6 min	4 min

Top Titanium Forged Fittings Manufacturing Company in UK

At PipingMart, we take pride in being the largest supplier and manufacturer in the UK, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UK, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.

Available Titanium Forged Fittings Grades

Titanium Gr 2 Forged Fittings
Titanium Gr 5 Forged Fittings

We offer These Titanium Forged Fittings as per DIN, ISO, JIS or ANSI Standard.

Titanium Equal Tee, Best Price of Titanium LB Forged Fitttings Expoter in Liversedge, Titanium Threaded Forged Fittings Supplier in Midland, UK.

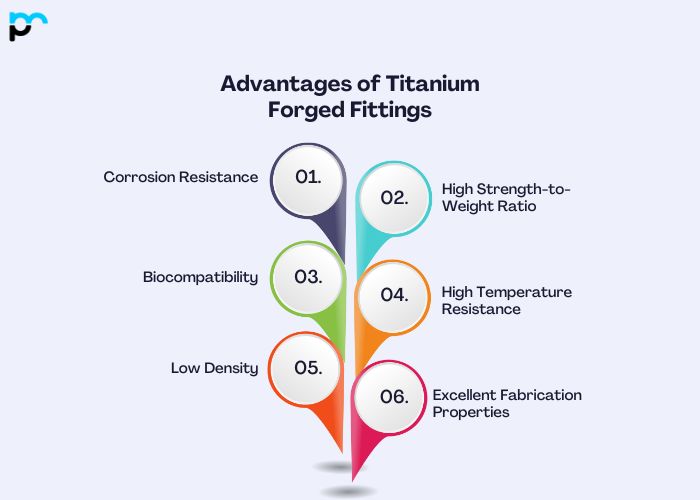

Advantages of Titanium Forged Fittings

Corrosion Resistance: Titanium Fittings exhibit exceptional corrosion resistance, making them highly durable and suitable for long-term use in corrosive environments.
High Strength-to-Weight Ratio: These fittings offer impressive strength relative to their lightweight, providing structural integrity without adding unnecessary bulk.
Biocompatibility: Titanium Fittings are biocompatible, making them ideal for medical applications, implants, and industries requiring materials compatible with the human body.
High-Temperature Resistance: They can withstand high temperatures without losing performance, ensuring reliability in applications where heat resistance is critical.
Low Density: With a low density, titanium fittings contribute to lightweight structures, reducing overall weight in various applications while maintaining strength.
Excellent Fabrication Properties: Titanium’s excellent fabrication properties allow for easy shaping and customization, enabling intricate designs and precise fittings tailored to specific requirements.

Types of Titanium Forged Fittings

Stockist of Titanium Forged Fittings Price in Liversedge, Stockholder of Titanium Threaded Forged Fittings in UK, Titanium Socket Weld Forged Fittings Exporter in Midland, UK.

Titanium Forged Fittings Uses

Application Industry

Titanium Forged Fittings applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Oil & Gas Industry

Aviation Industry

Petro Chemical Industry

Power Generation Industry

Aerospace Industry: Titanium Forged Fittings are widely utilized in the aerospace sector for aircraft components, fuel systems, hydraulic systems, and structural elements due to their lightweight nature and high strength-to-weight ratio.
Chemical Processing: They find applications in chemical processing plants for piping systems, valves, and fittings where resistance to corrosive chemicals and high temperatures is crucial.
Oil and Gas Sector: Titanium Fittings are employed in the oil and gas industry for offshore structures, pipelines, and subsea equipment, thanks to their corrosion resistance in saltwater environments.
Medical Implants: Due to their biocompatibility, these fittings are used in medical implants like orthopaedic implants, prosthetics, and surgical instruments where compatibility with the human body is essential.
Marine Engineering: Titanium fittings are preferred for shipbuilding, desalination plants, and offshore platforms due to their resistance to seawater corrosion and durability in harsh marine conditions.
Power Generation: They are utilized in power generation facilities for steam turbine systems, heat exchangers, and reactor components where high-temperature resistance and reliability are paramount.

How to Choose the Right Titanium Forged Fittings

Consider Application Requirements: Assess the specific requirements of the application, such as pressure rating, temperature range, corrosion resistance, and compatibility with other materials, to ensure the selected titanium forged fittings meet these criteria.
Material Grade Selection: Choose the appropriate titanium grade based on the application’s environmental conditions, operating temperatures, and performance demands to ensure optimal functionality and longevity.
Size and Dimension Compatibility: Ensure the fittings’ size, shape, and dimensions align with the piping system specifications to guarantee a proper fit and secure connection for efficient operation.
Certifications and Standards: Verify that the titanium forged fittings comply with industry standards, certifications, and regulations to guarantee quality, safety, and reliability in the intended application.
Consult with Experts: Seek advice from titanium material experts or suppliers to get recommendations on the most suitable fittings for your specific application requirements, ensuring proper selection and performance.
Budget and Cost Consideration: Factor in budget constraints, overall costs, and long-term maintenance requirements when selecting titanium forged fittings to effectively balance performance with economic considerations.

What Temperature Ranges Can Titanium Forged Fittings Withstand?

Titanium Forged Fittings can typically withstand temperature ranges from -250°C to 400°C, making them suitable for extreme applications.

FAQ (Frequently Asked Questions)

How Does Alloy Composition Affect Titanium Forged Fittings Performance?

The alloy composition of titanium-forged fittings directly impacts their performance by influencing factors such as strength, corrosion resistance, and temperature tolerance, which determine their suitability for specific applications and environments.

How Does Cold Working Affect Magnetic Properties Of Titanium Forged Fittings?

Cold working can increase the magnetic permeability of Titanium Forged Fittings due to induced stresses and distortions in the material’s atomic structure, potentially altering its magnetic properties compared to the original state.

What Precautions Are Needed For Installing Titanium Forged Fittings Underground?

When installing Titanium Forged Fittings underground, it’s essential to protect them from galvanic corrosion using compatible materials, ensure proper insulation to prevent electrical conductivity with surrounding metals and implement adequate sealing against moisture ingress to maintain long-term integrity in underground environments.
