Monel Stud Bolts Manufacturer & Supplier in Midland, UK

Monel Stud Bolts in UK, Monel Threaded Stud Bolts in UK, Monel Double Ended Stud Bolts in Liversedge, Monel Stud Bolts Manufacturer, Supplier in Midland, UK.

Monel stud bolts are high-tensile fasteners manufactured from Monel, a Nickel copper alloy with excellent corrosion resistance in severe conditions. These bolts are widely applied in marine, oil and gas, and chemical processing applications where corrosion resistance is paramount. Monel stud bolts are reliable and long-lasting because of the characteristics of the material and are suitable for use in industries that require secure and long-lasting fasteners.

Monel Stud Bolts Specifications

Grade	Monel 400 (UNS N04400)
Specifications	ASTM F467 /ASME SF467
Dimension	ASTM, IS, BS and all International Standards
Length	3mm to 200mm
Size	M02 to M33 \| Custom Sizes
Types	Threaded Rod, Class A double ended stud, Tie Rod, Double Ended Stud, Stud Bolts, Bronze Hex Studs, Threaded Studs etc

Mechanical Properties of Monel Stud Bolts

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
8.8 g/cm3	1350 °C (2460 °F)	Psi – 35,000 , MPa – 240	Psi – 80,000 , MPa – 550	40 %

Monel Stud Bolts Chemical Composition

Element	Content (%)
Nickel, Ni	63.00 min
Silicon, Si	0.5 max
Carbon, C	0.3 max
Sulphur, S	0.024
Copper, Cu	28-34
Iron, Fe	2.5 max
Manganese, Mn	2 max

Top Monel Stud Bolts Manufacturing Company in UK

At PipingMart, we take pride in being the largest supplier and manufacturer in the UK, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UK, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.

Available Monel Stud Bolts Grades

Monel 400 Stud Bolts

We offer These Monel Stud Bolts as per DIN, ISO, JIS or ANSI Standard.

Monel Hex Studs Bolts in UK, Monel Threaded Stud Bolts, Monel Stud Bolt in UK, Monel Double Ended Stud Bolts Stockist in Midland, UK.

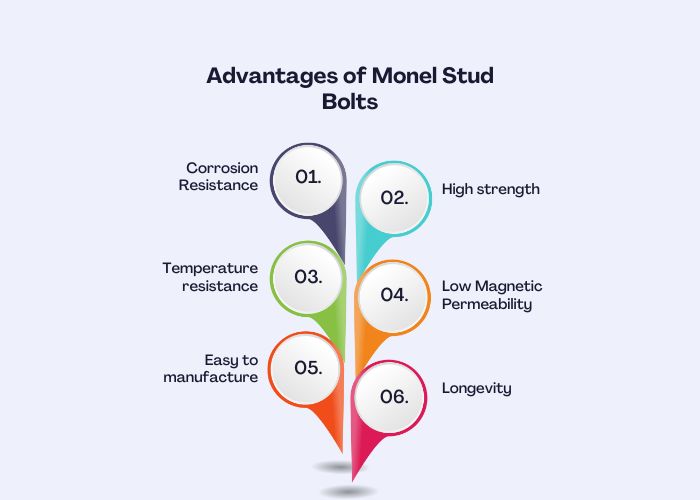

Advantages of Monel Stud Bolts

Corrosion Resistance: Monel stud bolts are highly resistant to corrosion, especially in marine and chemical environments, ensuring long-term durability and reliability.
High Strength: These bolts exhibit exceptional strength, providing robust fastening solutions for heavy-duty applications where structural integrity is crucial.
Temperature Resistance: With a capacity to withstand a wide range of temperatures, Monel stud bolts remain stable and effective in varied operational conditions.
Low Magnetic Permeability: Monel’s low magnetic permeability makes these bolts suitable for applications where magnetic interference must be minimized or eliminated.
Easy to Manufacture: The manufacturing process of Monel stud bolts is straightforward, ensuring consistent quality and availability for industrial needs.
Longevity: Monel stud bolts offer a prolonged service life, reducing replacement frequency and maintenance costs while providing enduring performance in challenging environments.

Types of Monel Stud Bolts

Monel Metric Thread Stud Bolts in UK, Monel Forged Stud Bolts in UK, Monel Tap End Stud Bolts Supplier in Yorkshire, Monel Stud Half Thread Bolts Manufacturer and Supplier in Midland, UK.

Monel Stud Bolts Uses

Application Industry

Monel Stud Bolts applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Oil & Gas Industry

Aviation Industry

Petro Chemical Industry

Power Generation Industry

Marine Engineering: Monel stud bolts are widely used in marine industries because of their high corrosion resistance; thus, they are suitable for parts likely to be in contact with seawater and other extreme marine environments.
Chemical Processing: Monel stud bolts are preferred in chemical plants due to their excellent resistance to corrosive chemicals and high temperatures, thus providing reliable fastening in highly stressed and critical service applications.
Valve Industry: Monel stud bolts are used in valve manufacturing due to their ability to resist corrosion and high strength, making the valves handle different fluids and gases function well.
Oil and Gas Sector: Monel stud bolts are used in the oil and gas industries to connect pipelines, flanges and equipment exposed to corrosive conditions to provide safety and durability in such applications.
Aerospace Applications: Because of their high tensile strength, heat, and corrosion resistance, Monel stud bolts are used in aerospace engineering to fasten parts in aircraft structures and engines where failure is not an option.
Power Generation Plants: Monel stud bolts are widely used in power generation plants to fasten turbines, boilers, and other equipment used in high-temperature and corrosive settings to deliver efficient and safe operations.

How to Choose the Right Monel Stud Bolts

Consider the Environment: Determine the specific operating conditions, like exposure to corrosive materials or high temperatures, to get the right Monel stud bolts with the right level of corrosion resistance and temperature stability.
Evaluate Strength Requirements: Establish the load required in the application to obtain Monel stud bolts with the right capacity to withstand the expected loads.
Size and Thread Specifications: Use the right Monel stud bolt size, length, and thread that will fit the components to be joined and properly aligned for proper assembly.
Consult Industry Standards: Consult the current standards and codes of the application, like the ASTM standard specifications for Monel alloy, to get the right stud bolts.
Installation Considerations: The installation process and tools needed when selecting Monel stud bolts should also consider the available installation techniques and ease of inserting the bolts into the application.
Budget and Longevity: Compare the cost with the expected lifespan of the Monel stud bolts. Going for a quality product that may cost a little more but will not require frequent replacement and maintenance is advisable.

How Does Welding Affect The Strength Of Monel Stud Bolts?

Welding can impact the strength of Monel stud bolts by introducing heat-affected zones that may alter the material properties, leading to changes in mechanical strength and corrosion resistance. It is important to follow recommended welding practices to minimize any negative effects on the overall strength and performance of the stud bolts.

FAQ (Frequently Asked Questions)

Can Monel Stud Bolts Be Welded?

Yes, Monel stud bolts can be welded using appropriate welding techniques and procedures for working with Monel alloys. Welding processes must consider the specific grade of Monel used to ensure a successful weld with optimal strength and corrosion resistance.

Can Monel Stud Bolts Attract Magnet?

Monel stud bolts typically exhibit low magnetic permeability, which means they are generally non-magnetic or have minimal magnetic attraction. This property makes Monel stud bolts suitable for applications where magnetic interactions must be minimized.

Are Monel Stud Bolts Suitable For Hygienic And Sanitary Applications?

Monel stud bolts are suitable for hygienic and sanitary applications, especially in industries like food processing and pharmaceuticals, due to their corrosion resistance, durability, and ease of cleaning, making them ideal for maintaining strict hygiene standards.
