Monel Pipe Fittings Manufacturer and Supplier in Midland, UK.

Monel Alloy Butt Weld Fittings in UK, Monel Pipe Fittings, Monel Semless Fittings Exporter in Liversedge, Monel Instrumentation Fittings Supplier in Midland, UK

Monel Pipe Fittings are components used to connect sections of Monel pipes in plumbing or piping systems. They are typically made from Monel alloy, a corrosion-resistant material known for its strength and durability. These fittings come in various types, such as elbows, tees, reducers, and couplings, ensuring a secure and leak-free connection in demanding environments where resistance to corrosive elements is crucial. Due to their exceptional properties, Monel Pipe Fittings are commonly utilized in industries like marine, chemical processing, and oil & gas.

Monel Pipe Fittings Specifications

Specifications

ASTM B366 / ASME SB366, ASTM B366 UNS N04400, ASME SB366 UNS N04400

ASTM B366 400 Monel Fittings size

UNS N04400 Seamless Fittings: 1/2″ – 10″ Alloy 400 Butt Weld Fittings: 1/2″ – 48″

ASTM B366 UNS N04400 Pipe Fittings Standards

ASME B16.9, ASME B16.11, ASME B16.28, MSS-SP-43, BS4504 , BS4504, BS1560, BS10

2.4360 Alloy 400 Fittings Available Thickness

Schedule 5s, 10s, 40s, 80s, 10, 20, 40, STD, 60, 80, XS, 100, 120, 140, 160, XXS available with NACE MR 01-75

Nickel Alloy 400 Buttweld fitting Main Types

Seamless / Welded / Fabricated

ASTM B366 4400 Threaded Fittings Thread

NPT , BSPT, BSPP

Monel Alloy 400 Fittings Type

DN15-DN1200

End

Threaded, Welding, JIC

ASME SB 366 N04400 Forged Fittings Pressure Rating

2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS

Connection

Welding

Monel 400 Fitting Test Certificates

EN 10204/3.1B Raw Materials Certificate 100% Radiography Test Report Third Party Inspection Report, etc

ASTM B366 400 Monel Pipe Fittings manufacturers

Raccortubi S.p.A., Italy
TecnoForge, Italy
Melesi, Italy
BENKAN Corporation, Japan
Mega, Italy
Ulma, Spain
Erne Fittings, Austria
BKL- Thai Benkan, Thailand
Lame S.r.l., Italy
Metal far, Italy

Types of Monel 400 Fittings

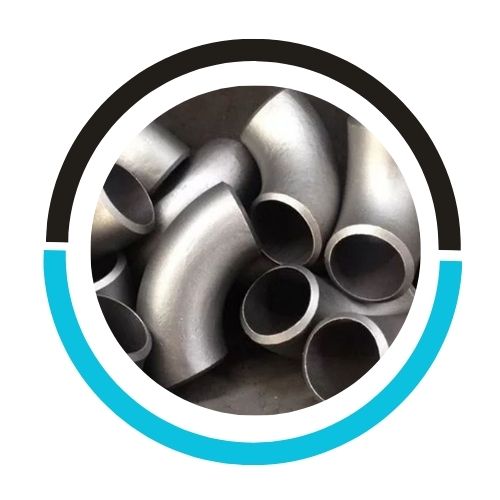

ASTM B366 400 Monel Buttweld Fittings
UNS N04400 Forged Fittings

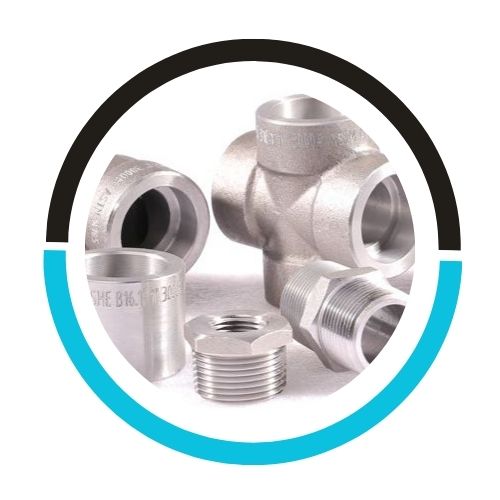

Alloy 400 Socket weld Fittings
ASTM B564 UNS N04400 Threaded Fittings
2.4360 Alloy 400 Tube Fittings
Nickel Alloy 400 Ferrule Fittings
ASTM B564 4400 Compression Fittings
Monel Alloy 400 Compression Tube Fittings
ASME SB 564 N04400 Hydraulic Fittings
Monel 400 Flare Fittings
ASTM B564 400 Monel Flare Tube Fittings
UNS N04400 Compression Pipe Fittings
Alloy 400 Pneumatic Pipe Fittings
ASTM B564 UNS N04400 Npt /Bsp / Bspp/ Bspt Tube Fittings

Mechanical Properties of Monel Pipe Fittings

Density	Melting Point	Yield Strength (0.2%Offset)	Tensile Strength	Elongation
8.8 g/cm3	1350 °C (2460 °F)	Psi – 35,000 , MPa – 240	Psi – 80,000 , MPa – 550	40 %

Monel Pipe Fittings Chemical Composition

Monel 400	Ni	C	Al	Mn	Si	Fe	Cu	S	Co	Cr
Monel 400	63.0 min	0.3 max	0.50 max	2.0 max	0.5 max	1.0 – 2.5	28.0 – 34.0	0.02 max	–	–

Top Monel Pipe Fittings Manufacturing Company in UK

At PipingMart, we take pride in being the largest supplier and manufacturer in the UK, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UK, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.

Available Monel Pipe Fittings Grades

Monel 400 Pipe Fittings
Monel K500 Pipe Fittings

We offer These Monel Pipe Fittings as per DIN, ISO, JIS or ANSI Standard.

Buy Monel Pipe Fittings in UK, Monel Alloy Double Ferrule Fittings, Monel Pipe Fitting Price List in Liversedge, Monel Butt Weld Fittings in Midland, UK.

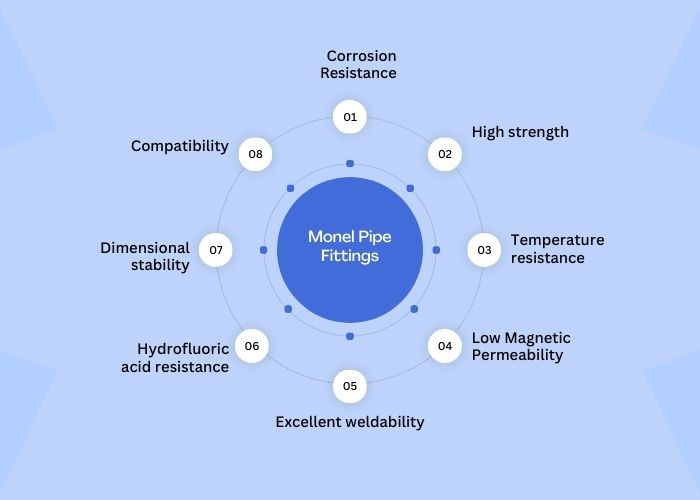

Advantages of Monel Pipe Fittings

Corrosion resistance: Monel pipe fittings excel in harsh environments due to their exceptional corrosion resistance, making them ideal for corrosive materials such as seawater or chemical solutions.
High strength: These materials provide high strength and durability, can withstand high mechanical stresses, and provide reliability for demanding industrial conditions where toughness is required.
Temperature resistance: Monel pipe inserts maintain integrity at elevated temperatures, providing durability and performance where temperature fluctuations are common, such as in oil refineries or manufacturing facilities, medicines
Low Magnetic Permeability: Monel fittings with low magnetic permeability are suitable for applications where it is necessary to minimize magnetic interference and improve the accuracy of sensitive tools or equipment
Excellent weldability: Monel pipe fittings are known for their excellent weldability, safe and durable connections during installation or maintenance, and the piping system’s ease of maintenance and longevity.
Hydrofluoric acid resistance: Their resistance to hydrofluoric acid makes their Monel fittings suitable for applications requiring this corrosive material, making them reliable and safe in such environments.
Dimensional stability: Monel pipe fittings exhibit dimensional stability under a variety of conditions, ensuring accurate and consistent fitting alignment over time, which is critical to piping system performance and reliability
Compatibility: Monel fittings are compatible with a wide range of materials and fluids, enabling them to work in various industrial applications and ensuring seamless integration into existing piping systems without compatibility issues.

Types of Monel Pipe Fittings

Monel Pipe Fittings in UK, Monel High Pressure Pipe Fittings in UK, Monel Alloy Single Ferrule Fittings in UK, Monel Alloy Compression Pipe Fittings Supplier in Midland, UK.

Monel Pipe Fittings Uses

Application Industry

Monel Pipe Fittings applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Oil & Gas Industry

Aerospace Industry

Petro Chemical Industry

Power Generation Industry

Marine applications: Monel pipe fittings are commonly used in marine environments for better resistance to seawater, making them ideal for shipbuilding, offshore platforms and other marine structures that require durability
Chemical applications: Thanks to their resistance to various chemicals and acids, Monel fittings are gaining increasing application in the chemical industry for dealing with corrosion, providing reliability and safety in critical applications
Oil and Gas Industry: In the oil and gas industry, Monel pipe fittings are used in pipelines, refineries and petrochemical plants, where they provide exceptional resistance to harsh environmental conditions, high temperatures and water turbulence and contribute to efficiency and durability
Aerospace Applications: Monel fittings are used in the aerospace industry for their durability, durability, and extreme heat resistance, making them suitable for aircraft parts, fuel systems, and other aspects where reliability is required
Food processing: Monel pipe fittings are used in food processing areas where hygiene and corrosion resistance are critical. Their ability to maintain purity and resist corrosion makes them suitable for safely handling food products.
Medical Devices: In medical situations, Monel fittings are found in devices that require corrosion resistance, such as some surgical or medical devices, and their biocompatibility and durability make them a reliable option for use in medicine.

How to Choose the Right Monel Pipe Fittings

Corrosion Compatibility: Consider the specific corrosive conditions of the fittings and ensure that the Monel pipe fittings selected have adequate corrosion resistance to effectively withstand these conditions.
Pressure and Temperature Ratings: Determine your application’s pressure and temperature requirements and choose Monel fittings that can operate safely within these parameters without compromising performance or integrity.
Size and Dimensional Requirements: Select Monel pipe fittings that match the size and dimensional specifications of your piping system to ensure proper fitment and dimension to prevent leaks or structural problems
End Connection Types: Determine the type of end connections required for your application (e.g., threaded, socket weld, buttweld) and select Monel fittings with compatible finished connections to facilitate installation and easy maintenance procedures.
Compliance with Industry Standards: Ensure selected Monel pipelines meet relevant industry standards and certifications to ensure quality, reliability, and compliance with safety regulations in your specific industry or application.
Consultation with Experts: When in doubt, seek advice from industry experts or suppliers specializing in Monel fittings to get recommendations tailored to your unique requirements and ensure the right selection for your application.

Are Monel Pipe Fittings suitable for hygienic and sanitary applications?

Due to the challenges of meeting strict cleanliness requirements, Monel Pipe Fittings could be better for hygienic and sanitary applications. Industries like food, pharmaceuticals, and biotechnology often opt for materials like stainless steel that adhere to stringent sanitary standards for such critical applications.

FAQ (Frequently Asked Questions)

Are Monel Pipe Fittings Susceptible To Galvanic Corrosion?

Monel pipe fittings are susceptible to galvanic corrosion when in contact with dissimilar metals under certain conditions. Galvanic corrosion occurs due to electrical differences in metals, causing rapid corrosion of noble inferior materials, which may compromise the integrity of the fitting over time. Adequate insulation or implementation of compatible materials can reduce this risk.

What are the considerations for installing Monel Pipe Fittings?

When installing Monel Pipe Fittings, it’s important to consider factors such as proper alignment, appropriate torque settings for fasteners, and using compatible gaskets or seals to prevent leaks. Additionally, ensuring proper insulation from dissimilar metals and implementing corrosion prevention measures can enhance the longevity and performance of the fittings in various applications.

Can Monel Pipe Fittings be used for structural applications?

Monel Pipe Fittings are not typically recommended for structural applications because their primary function is the connection and direction of fluid flow in piping systems. Materials specifically designed for structural integrity, such as steel or aluminium, are more suitable choices for structural purposes where load-bearing capabilities are essential.
