Inconel 600 Pipes Seamless & Welded Pipe Suppliers and Manufacturer in UK

Inconel 600 Seamless Pipe, Inconel N06600 Pipes, Inconel Alloy 600 Pipes Supplier in Birmingham, ASME SB 167 Alloy 600 Seamless Pipes, Nickel Alloy 600 Pipes Exporter in UK, Alloy 2.4816 Pipes, Inconel 600 Pipes Supplier in Midland, Inconel 600 Suppliers UK

Inconel 600 Pipes are a type of nickel-chromium alloy that is characterized by high temperature and corrosion resistance. These pipes are used in severe conditions like chemical processing, aerospace, and nuclear industries. Inconel 600 Pipes have excellent mechanical characteristics and are widely used in industries that require heat and corrosion resistance. They are prized for their strength, durability, and capacity to hold up under pressure and are used in many industries where conditions are tough.

Inconel 600 Pipes Specifications

Standard	ASTM B167, B517 / ASME SB 167, SB 517
Standard	ASTM, ASME and API
Size	15 NB UP TO 600 NB IN SCH 5S, 10S,10, 20, 40S, 40, STD, 60, 80S, 80, XS, 100, 120, 140, 160 & XXS
Length	Single Random, Double Random & Required Length, Cut Length
End	Plain End, Beveled End, Treaded

Inconel 600 Pipes Chemical Composition

Grade	C	Mn	Si	Cu	S	Fe	Mo	Ni	Cr
Alloy 600	0.15 max	1 max	0.50 max	0.50 max	0.15 min	6.0-10.0	–	72 min	14.0–17.0

Inconel 600 Pipes Mechanical Properties

Density	Melting Point	Tensile Strength	Yield Strength (0.2%Offset)	Elongation
8.47 g/cm3	1413 °C (2580 °F)	Psi – 95,000 , MPa – 655	Psi – 45,000 , MPa – 310	40 %

Inconel N06600 Seamless Pipe UK, ASTM B517 Inconel 600 Pipe UK, Alloy JIS NCF 600 Pipes UK, Inconel 600 Welded Pipe Manufacturer And Supplier in Midland, UK

Top Steel Manufacturing Company in UK

At PipingMart, we take pride in being the largest supplier and manufacturer in the UK, offering cutting-edge solutions for all your piping needs. With state-of-the-art production plants strategically located in the UK, we boast a vast inventory of over 25,000 tons of premium-quality materials readily available in stock.

We offer These Inconel 600 Pipes as per DIN, ISO, JIS or ANSI Standard.

Inconel Alloy 600 ERW Pipes UK, ASTM B167 Inconel 600 Seamless Pipe UK, Inconel Alloy 600 Seamless Pipe Supplier in UK, Inconel 600 Pipes Supplier And Manufacturer in Midland, UK

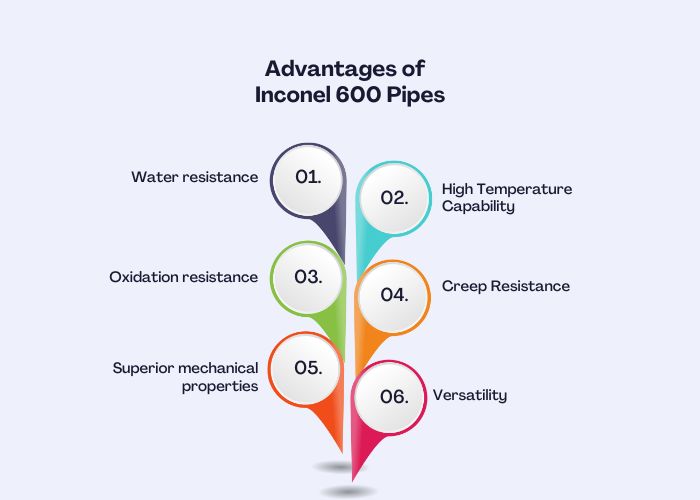

Advantages of Inconel 600 Pipes

Water Resistance: Inconel 600 Pipes also have excellent water resistance and, therefore, can be used in areas where the metal is prone to be exposed to water. This quality assists in avoiding corrosion and guarantees the durability of the pipes in various conditions.
High-Temperature Capability: These pipes can also not deform when exposed to high temperatures and, therefore, are suitable for use in areas where temperatures are high, like in industrial furnaces or exhaust systems.
Oxidation Resistance: Inconel 600 Pipes have a very high degree of oxidation resistance, meaning that they will not degrade or lose their performance in high oxygen concentration areas where other materials would rust.
Creep Resistance: These pipes possess excellent creep resistance characteristics, and they can endure the application of steady stress and high temperatures for a long without altering their shape, thus offering long-term reliability in their usage.
Superior Mechanical Properties: Inconel 600 Pipes have excellent mechanical properties, such as high tensile strength and toughness, to perform well in harsh service environments.
Versatility: Due to the properties that make them suitable for various operating conditions and demands, Inconel 600 Pipes are used in various industries and applications.

Types of Inconel 600 Pipes

Inconel 600 Pipes Uses

Chemical Processing: Inconel 600 Pipes are used widely in chemical processing industries because of their excellent corrosion resistance and capability to work in severe chemical atmospheres, and they are used to carry aggressive chemicals and gases.
Aerospace Industry: These pipes are used in the aerospace industry for applications such as aircraft exhausts and gas turbine parts where high temperature and strength are vital for their performance under harsh conditions.
Nuclear Industry: Inconel 600 Pipes are widely used in the nuclear industry as the reactor core components and steam generator tubes because of their excellent corrosion, radiation resistance, and high-temperature tolerance.
Heat Treatment Furnaces: They are widely used in heat treatment furnaces where high temperatures are necessary for such processes as annealing and hardening of metals due to their high-temperature characteristics and oxidation resistance.
Oil and Gas Sector: Inconel 600 Pipes are widely used in the oil and gas industry, where corrosive fluids, offshore drilling, and downhole equipment are used. These used pipes have to be durable, corrosion-resistant and possess mechanical strength.

ASME SB 167 Alloy 600 Seamless Pipes UK, Nickel Alloy 600 Pipes Exporter Manufacturer in Midland, Inconel 600 Pipes Supplier in Yorkshire, 600 Inconel Pipes Exporter in United Kingdom

Application Industry

Inconel 600 Pipes applications are as diverse as the industries they serve driven primarily by the aerospace, railway, construction and automotive industries with petrochemical, nuclear, medical, Oil & Gas, Chemical, Pharmaceutical, Food & Beverage, Nuclear, Thermal Power plants, Paper and Pulp, marine and mining, etc.

Oil & Gas Industry

Aviation Industry

Petro Chemical Industry

Power Generation Industry

How to Choose the Right Inconel 600 Pipes

Identify Application Requirements: Find the exact operating conditions, including temperature, pressure and corrosive atmosphere, to establish whether the chosen Inconel 600 pipes suit the application.
Consider Size and Dimensions: Select pipe size and dimensions that will allow the required flow rate, are compatible with the material of the rest of the system, and can be easily installed in the existing system.
Evaluate Corrosion Resistance Needs: Determine the degree of corrosion protection needed for the application and then choose Inconel 600 pipes with the right alloying elements to meet the corrosion protection needs in the working conditions.
Assess Temperature and Pressure Ratings: Consider the temperature and pressure ratings of pipes and the expected conditions of the environment to avoid situations where the pipes cannot withstand the expected conditions and still maintain their structural integrity and performance under pressure.
Consult with Experts: Consult with professionals in the field or the suppliers who specialize in offering Inconel 600 pipes to get the right type of pipe that meets your application needs and expected performance.

Can Inconel 600 Pipes Be Welded?

Yes, Inconel 600 Pipes can be welded using conventional welding techniques such as gas tungsten arc welding (GTAW), gas metal arc welding (GMAW), and shielded metal arc welding (SMAW). Proper welding procedures and expertise are essential to maintain the material’s integrity and performance.

Get a Quote from 600 Inconel Seamless Pipe manufacturer in UK, Prime quality Inconel N06600 Welded Pipe UK, stockist of Inconel 600 Hexagonal Pipe in UK, SCH40 Inconel 600 pipe and Inconel WERKSTOFF NR. 2.4816 Pipe dealers in Midland, UK

FAQ (Frequently Asked Questions)

Are Inconel 600 Pipes Suitable For Hygienic And Sanitary Applications?

Inconel 600 Pipes are not typically recommended for hygienic and sanitary applications due to their nickel-chromium composition, which may not align with the requirements. Stainless steel or other materials are more commonly used in sanitary environments for their compatibility with stringent hygiene standards.

Are Inconel 600 Pipes Susceptible To Galvanic Corrosion?

Inconel 600 Pipes are susceptible to galvanic corrosion when in contact with dissimilar metals in an electrolyte. Proper insulation or the use of compatible materials in contact with Inconel 600 is recommended to prevent galvanic corrosion.

Can Inconel 600 Pipes Be Recycled After Use?

Yes, Inconel 600 Pipes can be recycled after use. The nickel-chromium alloy composition of Inconel 600 makes it valuable for recycling purposes, where it can be reprocessed and reused in various industries to promote sustainability and resource efficiency.

Inconel 600 Pipes Size Chart

Inconel 600 Pipe OD mm	Pipe WT mm	in.	Sch	Kg/m
13.72	1.65	1/4	10S	0.50
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
17.15	2.31	3/8	40S	0.86
17.15	3.20	3/8	80S	1.12
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
26.67	2.87	3/4	40S	1.71
26.67	3.91	3/4	80S	2.23
33.40	2.77	1	10S	2.13
33.40	3.38	1	40S	2.54
33.40	4.55	1	80S	3.29
33.40	6.352)	1	160	4.30
42.16	2.77	1¼	10S	2.73
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.352)	1¼	160	5.69
48.26	2.77	1½	10S	3.16
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.60
60.33	8.742)	2	160	11.29
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.132)	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.492)	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.882)	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.262)	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.012)	8	160	112.97
